Understanding Safety Valve vs Pressure Valve
When it comes to maintaining safety and pressure control in industrial systems, valves play a crucial role. Two commonly confused components are the safety relief valve and the pressure relief valve. While they may sound similar, they serve slightly different purposes and operate under different conditions. In this blog, we’ll explore the difference between safety relief valve and pressure relief valve, their working principles, applications, and why choosing the right one matters for your system.

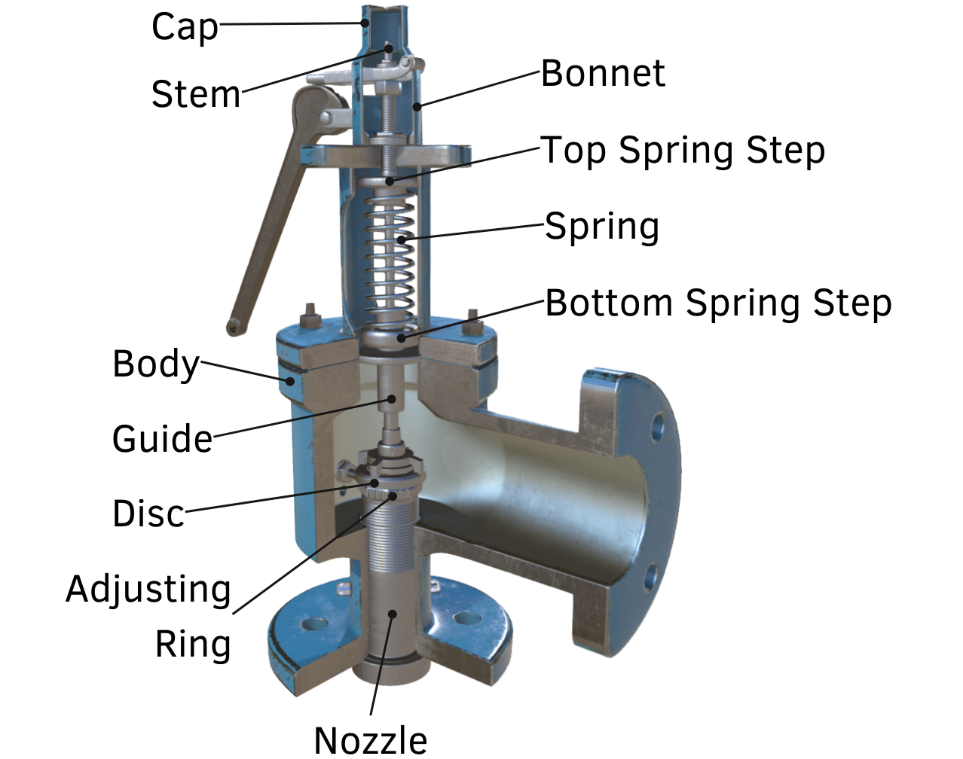

What is a Safety Relief Valve?
A safety relief valve is a type of valve designed to protect equipment from overpressure by automatically releasing pressure when it exceeds a set limit. It is typically used in gas, vapor, and steam applications.
Working Principle of Safety Relief Valve
The safety relief valve function on a spring-loaded pressure relief mechanism. When system pressure exceeds the valve’s pre-set limit, the internal spring compresses, allowing the safety valve to open and release excess pressure. This controlled release protects equipment and piping systems from overpressure damage. Once the system pressure returns to a safe operating level, the spring loaded safety valve automatically reseats, sealing the flow and restoring normal conditions.
Key Features:
- Combines characteristics of both safety valves and relief valves
- Opens fully when the pressure exceeds the set point
- Often used where both vapor and liquid phases are present
Types of Safety Valves
Understanding the types of safety valves helps in selecting the right one for your system:
- Spring Loaded Safety Valve
- Pilot Operated Safety Valve
- Balanced Safety Relief Valve
- Thermal Relief Valve
Applications:
- Boilers
- Compressors
- Pressure vessels

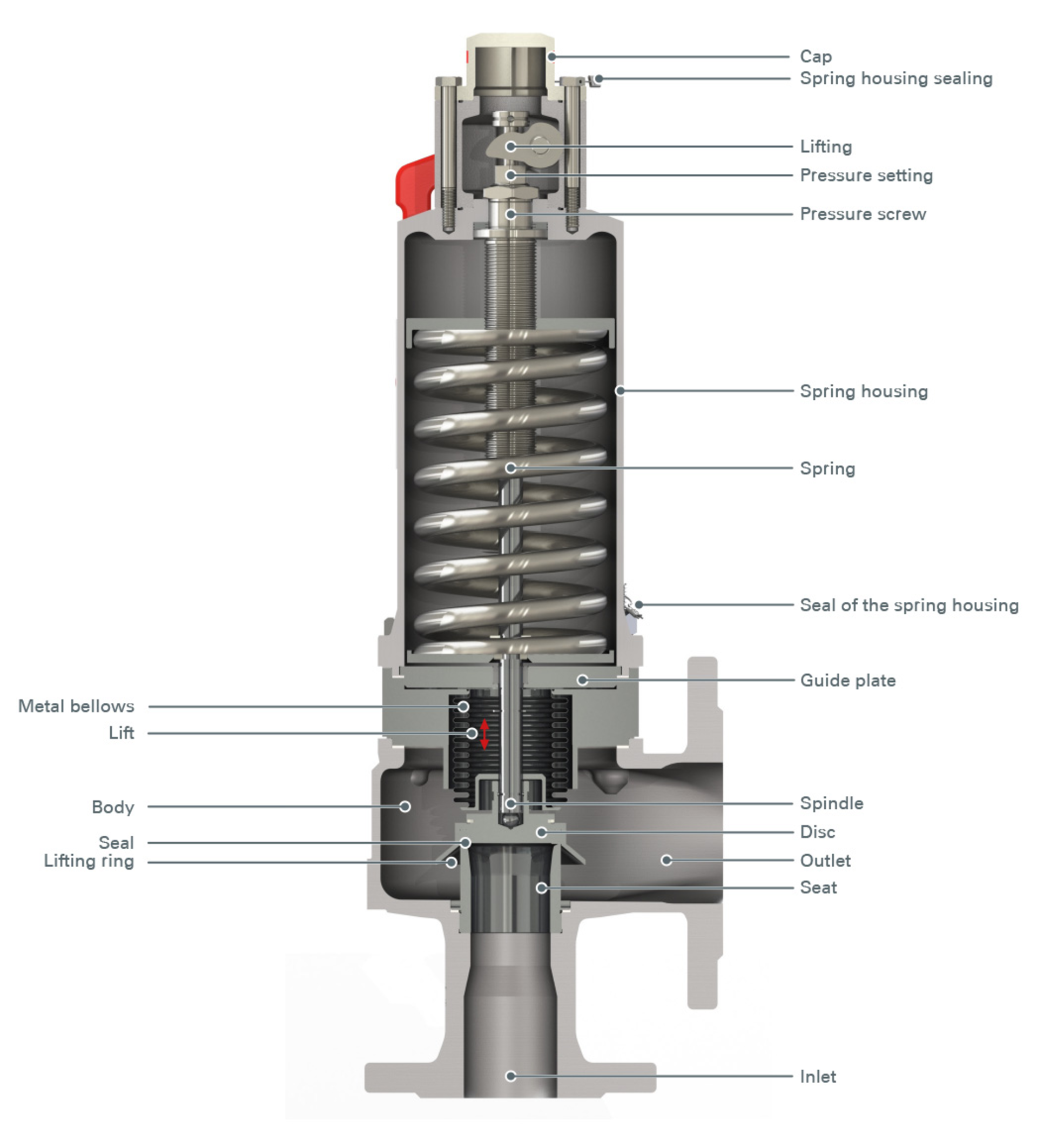

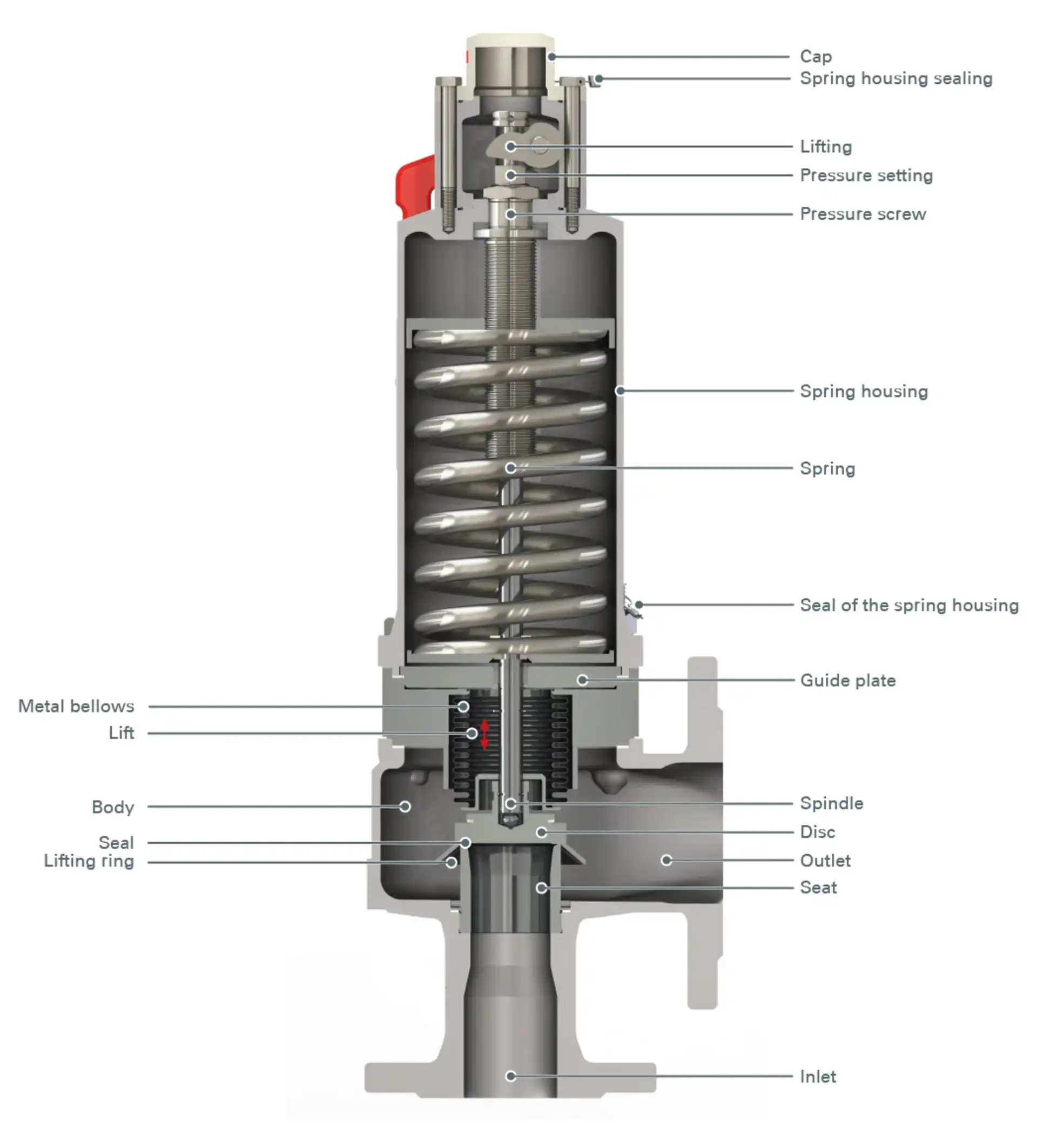

What is a Pressure Relief Valve?
A pressure relief valve (PRV) is mainly used in liquid systems to maintain system pressure below a defined limit. It opens gradually to relieve the excess pressure and closes once normal conditions return.
Working Principle of Pressure Relief Valve
The pressure relief valve working principle is based on a spring-loaded mechanism. When system pressure exceeds the pre-set spring force, the valve opens to divert fluid until the pressure drops to a safe level. Once normalized, the spring pushes the valve back into the closed position, preventing further flow.
Key Features:
- Typically used in liquid systems
- Opens proportionally to the increase in pressure
- Slower opening compared to safety valves.
Types of Pressure Relief Valve
Understanding the types of safety valves helps in selecting the right one for your system:
- Spring Loaded Pressure Relief Valve
- Pilot Operated Pressure Relief Valve
- Balanced Bellows Pressure Relief Valve
- Conventional Pressure Relief Valve
- Temperature and Pressure relief valve
Applications:
- Hydraulic systems
- Chemical processing equipment
- Liquid storage tanks
Safety Valve vs Pressure Relief Valve: Key Differences
| Feature | Safety Relief Valve | Pressure Relief Valve |
|---|---|---|
| Function | Releases pressure in both gas and liquid systems | Releases pressure mainly in liquid systems |
| Operation | Quick and full opening | Gradual opening |
| Application | Steam, air, gas & mixed systems | Oil, water & liquid systems |
| Design | Combines safety and relief mechanisms | Specifically for liquid-based systems |
| Opening Style | Snap-type action | Modulating type action |
Each type offers unique advantages depending on the application, pressure range, and medium used.
Why Understanding the Difference
Selecting the wrong valve type can lead to serious operational failures, equipment damage, or even hazardous situations. By understanding the difference between safety relief valve and pressure relief valve, engineers and maintenance professionals can ensure proper protection and compliance with safety standards.
Conclusion
At Ventil, we know that choosing the right valve is critical to system safety. Understanding the difference between safety relief valves and pressure relief valves helps ensure efficient, reliable pressure control. Our high-performance valves are built to meet demanding industrial needs because when pressure matters, precision counts. Ventil is the Leading safety valve manufacturer and Supplier in India.
