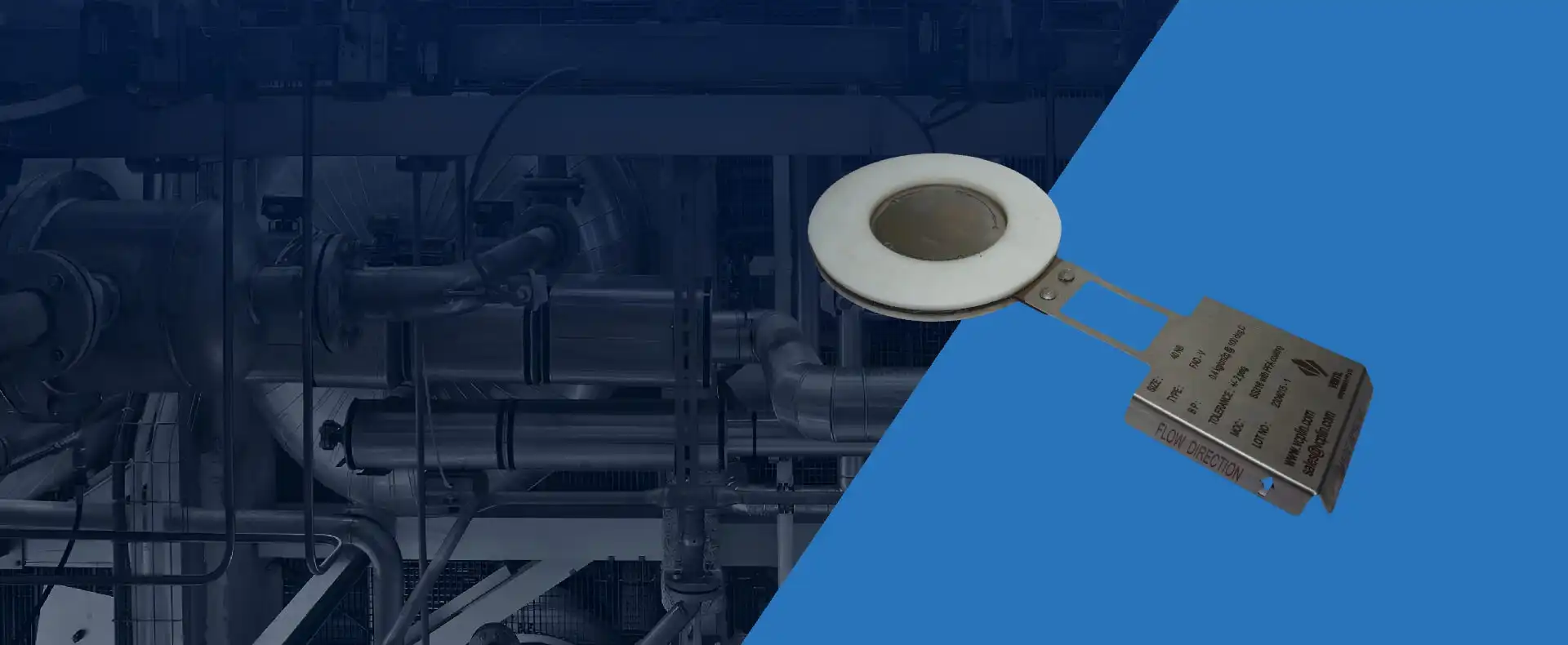

Flat Atmospheric Discs, commonly referred to as flat rupture discs, are engineered safety devices designed to rupture at precise burst pressures. These discs protect systems from overpressure or vacuum conditions, particularly in environments where maintaining low pressure is crucial.
At Ventil Components, we are industry leaders in the design and production of Flat Atmospheric Discs (FAD), offering precision-engineered pressure relief solutions. As trusted flat atmospheric discs manufacturers, our products combine durability, accuracy, and efficiency to meet the demands of critical industrial applications.
| Sr.No. | Size | Material SS304 | Material SS316 | ||
|---|---|---|---|---|---|
| Min. Press. | Max. Press. | Min. Press. | Max. Press. | ||
| 1 | 1" | 1.5 (21) | 9 (130) | 1.5 (21) | 9 (130) |
| 2 | 1.5" | 1 (14) | 7 (101) | 1 (14) | 7 (101) |
| 3 | 2" | 0.7 (10) | 12 (174) | 0.7 (10) | 12 (174) |
| 4 | 3" | 0.6 (8) | 8 (116) | 0.6 (8) | 8 (116) |
| 5 | 4" | 0.1 (1.45) | 15 (217) | 0.1 (1.45) | 15 (217) |
| 6 | 6" | 0.1 (1.45) | 8 (116) | 0.1 (1.45) | 8 (116) |
| 7 | 8" | 0.1 (1.45) | 5 (72) | 0.1 (1.45) | 5 (72) |
| 8 | 10" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
| 9 | 12" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
| 10 | 14" | 0.1 (1.45) | 2.5 (36) | 0.1 (1.45) | 2.5 (36) |
| 11 | 18" | 0.1 (1.45) | 5 (72) | 0.1 (1.45) | 5 (72) |
| 12 | 20" | 0.1 (1.45) | 3.5 (50) | 0.1 (1.45) | 3.5 (50) |
| 13 | 32" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
Note : Other Burst Pressure are available on request. Please consult factory. Ambient temperature in Pune @ 24 deg C and varies from 10 deg C in winter upto 40 deg C in summer.
| Burst Pressure | Tolerance |
|---|---|
| Below 40 psig | +/- 2 psi |
| Above 40 psig | +/- 5% |
If you are looking for reliable flat atmospheric discs or need expert advice on selecting the right FAD rupture discs, Ventil Components is here to help. As trusted flat atmospheric disc manufacturers, we ensure that every product meets the highest standards of quality and performance. As premier flat rupture disc manufacturers, we deliver superior pressure relief solutions tailored to your specific needs. Here’s what sets us apart:
Manufactured under stringent quality standards.
Advanced technology for superior performance.
Comprehensive guidance on rupture disc use and installation.
Trusted by industries worldwide for our reliable pressure relief solutions.
