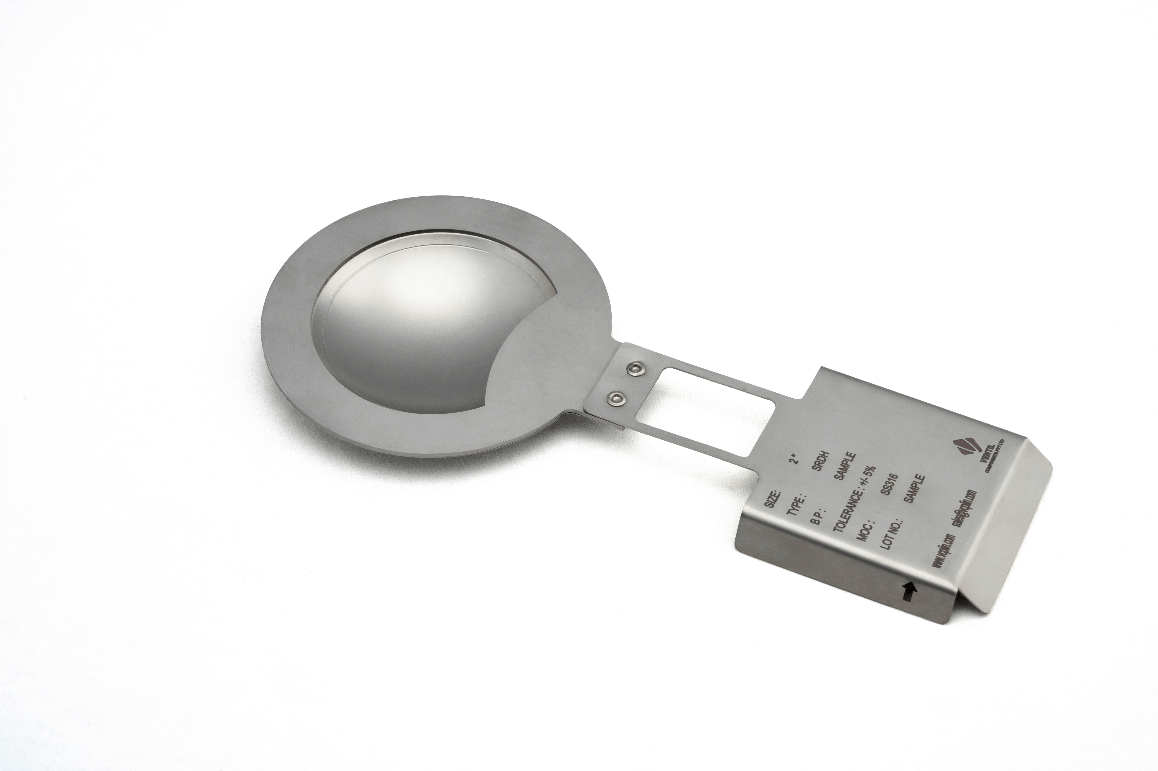

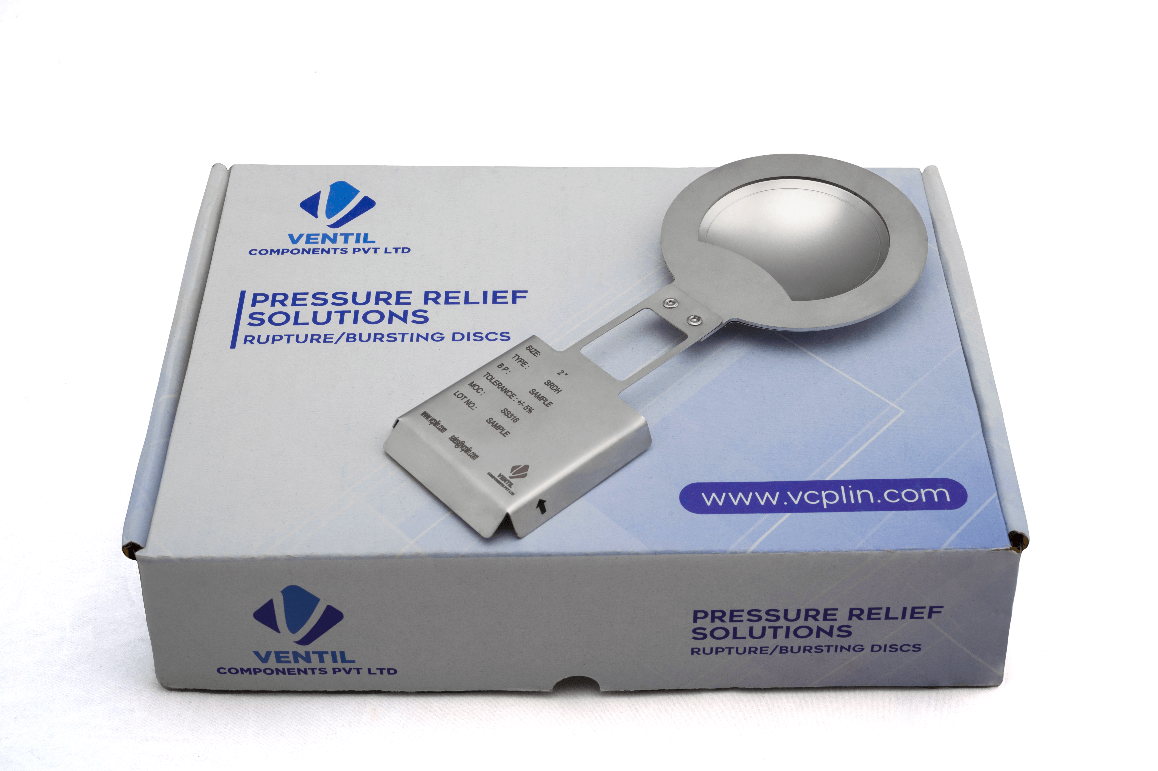

The Scored Reverse Acting Disc with Holder (SRDH) is a rupture disc designed to reverse and burst at a precise pressure threshold. Engineered with scored technology, it ensures a controlled, clean break, making it ideal for critical applications where accuracy and reliability are paramount. The integrated holder simplifies installation and alignment, ensuring optimal performance.
At Ventil Components, we specialize in manufacturing high-performance reverse acting rupture discs designed to meet the most demanding industrial applications. Our Scored Reverse Acting Disc with Holder (SRDH) is a state-of-the-art solution that ensures precise, reliable, and safe overpressure protection. As a trusted name among scored reverse acting rupture disc manufacturers, we deliver products that combine innovation with exceptional quality.
| Sr.No. | Size | Material SS316 | Material Hastelloy | ||
|---|---|---|---|---|---|
| Min. Press. | Max. Press. | Min. Press. | Max. Press. | ||
| 1 | 0.5" | 3 (44) | 34 (500) | 3 (44) | 34 (500) |
| 2 | 1" | 2 (30) | 20 (300) | 2 (30) | 20 (300) |
| 3 | 1.5" | 1.7 (25) | 24 (350) | 1.7 (25) | 24 (350) |
| 4 | 2" | 1.7 (25) | 27 (400) | 1.7 (25) | 27 (400) |
| 5 | 3" | 0.5 (8) | 27 (405) | 0.5 (8) | 27 (405) |
| 6 | 4" | 1.1 (17) | 4.8 (71) | 1.1 (17) | 4.8 (71) |
Note : Other Burst Pressure are available on request. Please consult factory. Ambient temperature in Pune @ 24 deg C and varies from 10 deg C in winter upto 40 deg C in summer.
| Burst Pressure | Tolerance |
|---|---|
| Below 40 psig | +/- 2 psi |
| Above 40 psig | +/- 5% |
If you’re looking for top-quality scored reverse acting rupture discs or need advice on selecting the right reverse buckling rupture disc for your application, Ventil Components is here to help. As a leader in reverse acting rupture disc manufacturers, we offer products that stand out for their quality, reliability, and technical precision. Here’s why clients trust us:
Manufactured under stringent quality standards.
Advanced technology for superior performance.
Comprehensive guidance on rupture disc use and installation.
Trusted by industries worldwide for our reliable pressure relief solutions.
