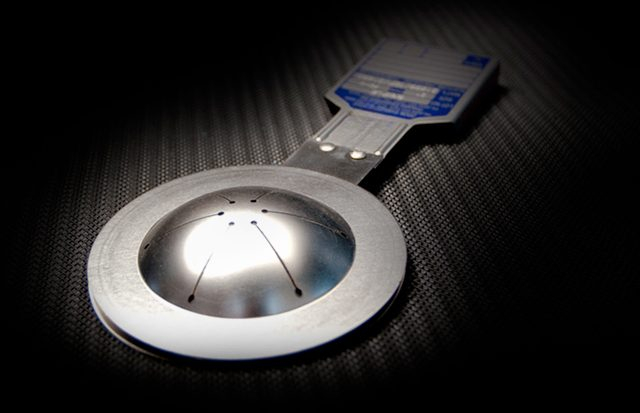

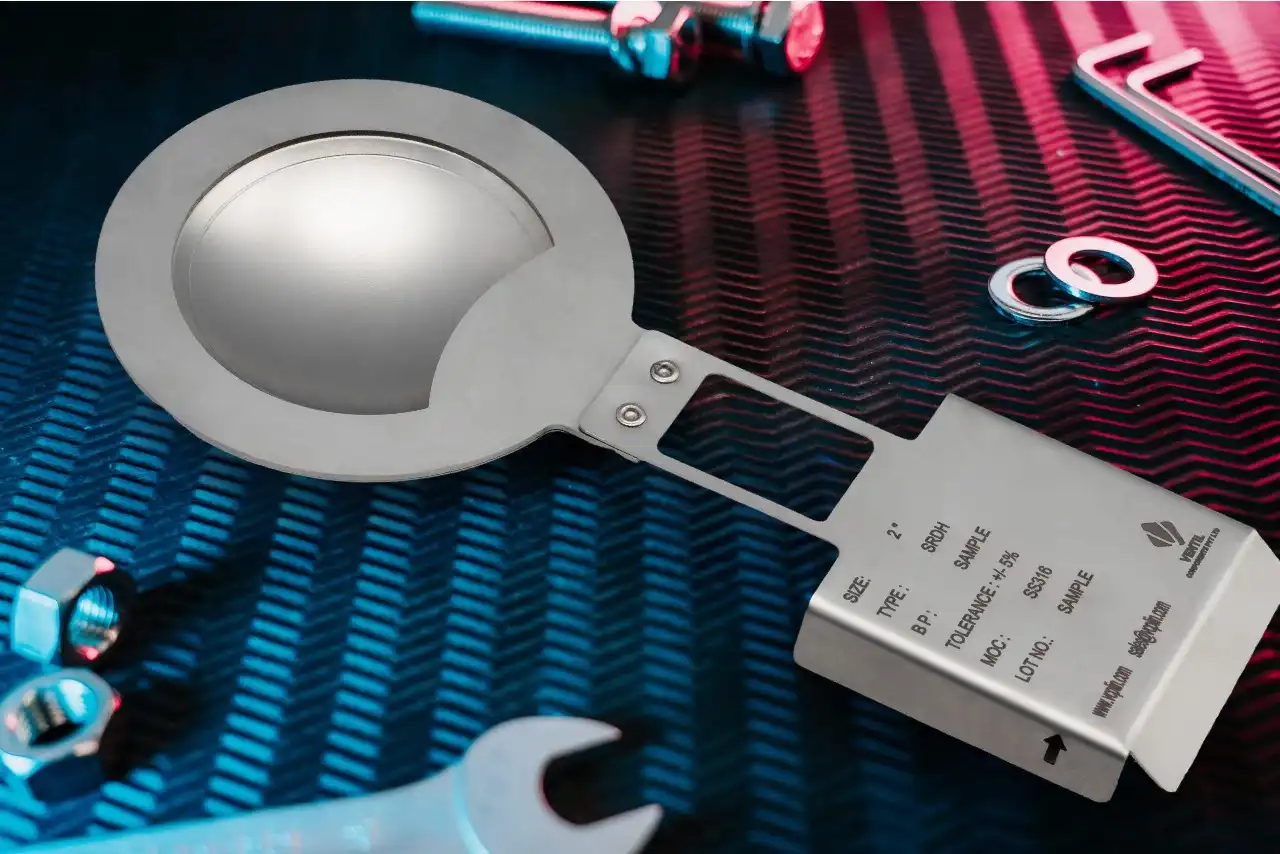

A composite rupture disc is a multi-layer pressure relief device designed to burst at a specific pressure to protect systems from overpressure conditions. Constructed with layers of different materials, the CRD offers enhanced durability, precise burst control, and versatility for various industrial applications.
Ventil Components offers premium Composite Rupture Discs (CRD), designed to provide superior overpressure protection in diverse industrial environments. Our CRD pressure relief discs feature multi-layer construction, ensuring precision, durability, and reliability for the most demanding applications. As a trusted composite rupture disc manufacturer, we deliver solutions that meet and exceed industry standards.
| Sr.No. | Size | Material SS304 | Material SS316 | ||
|---|---|---|---|---|---|
| Min. Press. | Max. Press. | Min. Press. | Max. Press. | ||
| 1 | 1" | 1.5 (21) | 9 (130) | 1.5 (21) | 9 (130) |
| 2 | 1.5" | 1 (14) | 7 (101) | 1 (14) | 7 (101) |
| 3 | 2" | 0.7 (10) | 12 (174) | 0.7 (10) | 12 (174) |
| 4 | 3" | 0.6 (8) | 8 (116) | 0.6 (8) | 8 (116) |
| 5 | 4" | 0.1 (1.45) | 15 (217) | 0.1 (1.45) | 15 (217) |
| 6 | 6" | 0.1 (1.45) | 8 (116) | 0.1 (1.45) | 8 (116) |
| 7 | 8" | 0.1 (1.45) | 5 (72) | 0.1 (1.45) | 5 (72) |
| 8 | 10" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
| 9 | 12" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
| 10 | 14" | 0.1 (1.45) | 2.5 (36) | 0.1 (1.45) | 2.5 (36) |
| 11 | 18" | 0.1 (1.45) | 5 (72) | 0.1 (1.45) | 5 (72) |
| 12 | 20" | 0.1 (1.45) | 3.5 (50) | 0.1 (1.45) | 3.5 (50) |
| 13 | 32" | 0.1 (1.45) | 1 (14) | 0.1 (1.45) | 1 (14) |
Note : Other Burst Pressure are available on request. Please consult factory. Ambient temperature in Pune @ 24 deg C and varies from 10 deg C in winter upto 40 deg C in summer.
| Burst Pressure | Tolerance |
|---|---|
| Below 40 psig | +/- 2 psi |
| Above 40 psig | +/- 5% |
