Introduction
In pharmaceutical manufacturing, safety and compliance are just as important as efficiency. One critical area of concern is the Fluidized Bed Dryer (FBD), widely used for drying powders and granules. Since powders can create dust explosions under certain conditions, installing an In- Line Flame Arrestor is essential for preventing accidents.
This blog explains the importance, working, and benefits of in-line flame arrestors in fluidized bed dryers, while highlighting why they are indispensable for the pharmaceutical industry.
What is an In-Line Flame Arrestor?
An In-Line Flame Arrestor is a safety device designed to prevent the propagation of flame within pipelines, equipment, or dryers. It works by quenching and cooling flames, stopping explosions from traveling through ducts or exhaust lines.
In the case of an FBD dryer, the in-line flame arrestor is installed in the exhaust line or air handling system to:
- Stop ignition sources from entering the drying chamber.
- Prevent flame propagation in case of a dust explosion.
- Ensure safe venting of gases while blocking fire hazards.
Why Fluidized Bed Dryers Need Flame Arrestors
A Fluidized Bed Dryer uses heated air to dry powders and granules by suspending them in a fluidized state. While this process is efficient, it carries explosion risks because:
- Powders are combustible when mixed with air.
- Static electricity or sparks can act as ignition sources.
- Dust clouds formed during drying can trigger rapid flame propagation.
Installing an in-line flame arrestor in FBD dryers provides an effective explosion protection solution, ensuring compliance with pharmaceutical safety standards such as ATEX and NFPA.
Applications of In-Line Flame Arrestors in Fluidized Bed Dryers
The in-line flame arrestor is widely used in:
1.Pharmaceutical Industry
- Prevents dust explosions in tablet and capsule production.
- Protects fluidized bed dryers (FBDs) used in granulation and drying.
2.Powder Handling Systems
- Safeguards conveying lines connected to dryers and mixers.
- Ensures safe exhaust management of volatile solvents and powders.
3.Chemical & Food Industry
- Used in spray dryers, blending units, and reactors where powders are processed.

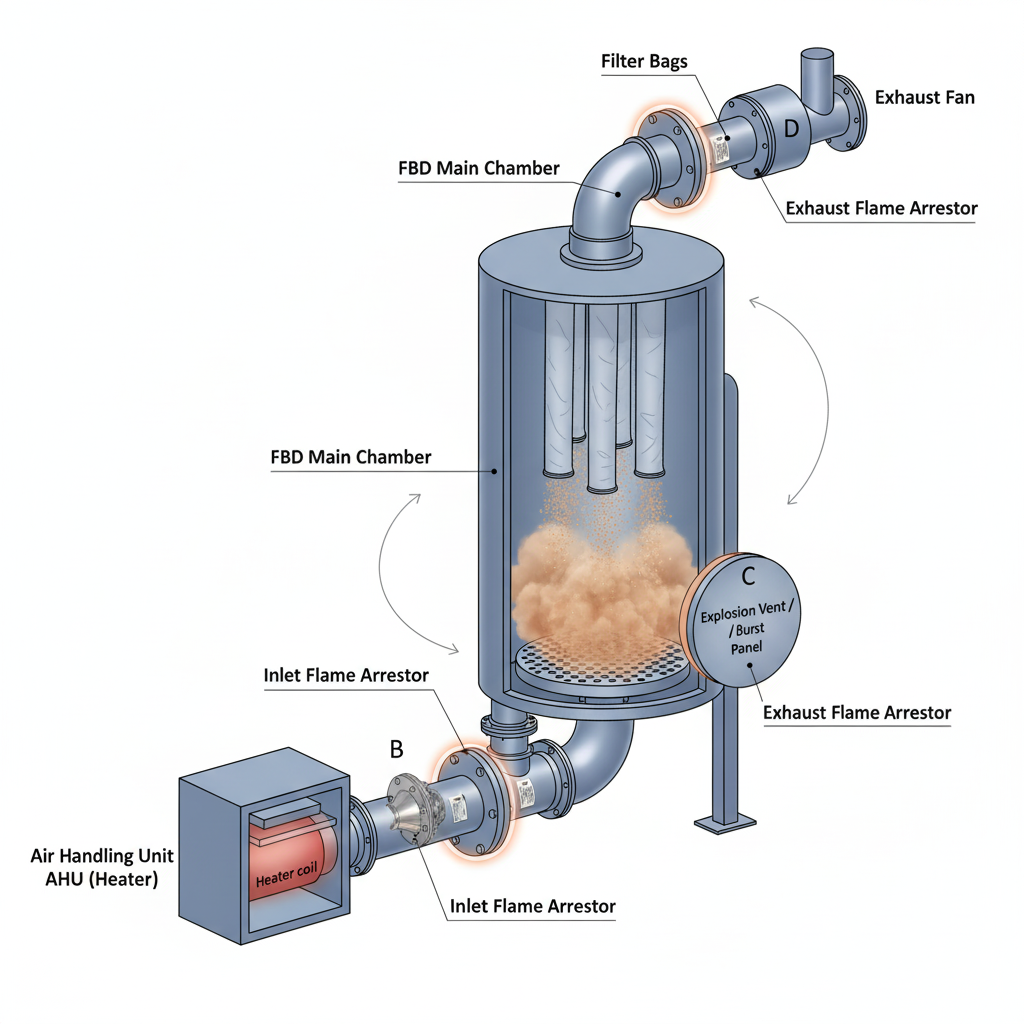

Working Principle of Fluid Bed Dryer (FBD) with In- line Flame Arrestors
A Fluid Bed Dryer (FBD) is a widely used drying equipment in the pharmaceutical, chemical, and food industries. It dries granules, powders, and pellets by passing a controlled stream of hot air through the product bed. This ensures uniform drying, prevents product degradation, and increases efficiency.
1. Air Heating & Entry
Clean air is first heated in the Air Handling Unit (AHU) using a heater coil. Before entering the system, the hot air passes through an inlet flame arrestor, which protects the FBD by stopping any reverse flame or ignition from reaching the heating source.
2. Fluidization & Drying
The heated air enters the FBD main chamber through a perforated distributor plate. This fluidizes the product bed, ensuring efficient heat transfer and even drying. Dust particles are carried upward and safely trapped by filter bags.
3. Exhaust & Safety
The moist exhaust air is released through the exhaust line. An exhaust flame arrestor is installed before the exhaust fan to block any sparks or flames from entering the chamber, ensuring safe operation.
4. Explosion Protection
To prevent damage during a dust explosion, the explosion vent (burst panel) activates, releasing excess pressure and protecting both equipment and operators.
5. Role of In-line Flame Arrestors
- Inlet Flame Arrestor: Blocks flame propagation from the heater to the FBD.
- Exhaust Flame Arrestor: Prevents ignition or fire from traveling into the exhaust lines.
Together, these arrestors provide explosion protection, making the Fluid Bed Dryer a safe, reliable, and compliant drying solution for sensitive industries.
Benefits of Using In-Line Flame Arrestors in FBD Dryers
- Enhanced Safety: Prevents dust explosions and flame propagation.
- Regulatory Compliance: Meets ATEX, NFPA, and pharmaceutical safety norms.
- Equipment Protection: Protects dryers, ducts, and surrounding machinery.
- Environmental Safety: Controls flame spread, reducing fire hazards.
- Cost Savings: Avoids downtime, accidents, and loss of product.
In-Line Flame Arrestor Manufacturers & Suppliers
Pharmaceutical companies should source from certified in-line flame arrestor manufacturers that provide:
- ATEX/CE certified flame arrestors.
- Custom-designed models for fluidized bed dryers.
- Options for India and global markets.
Conclusion
The use of an in-line flame arrestor in fluidized bed dryers is not optional it is a critical safety requirement for pharmaceutical manufacturing. By preventing explosions and ensuring compliance, flame arrestors protect people, equipment, and processes.
For pharmaceutical industries in India and worldwide, investing in a certified flame arrestor system is essential for ensuring safe, reliable, and efficient operations. Additionally, exploring the benefits of Rupture Discs in the pharmaceutical sector can significantly enhance safety standards and operational efficiency.

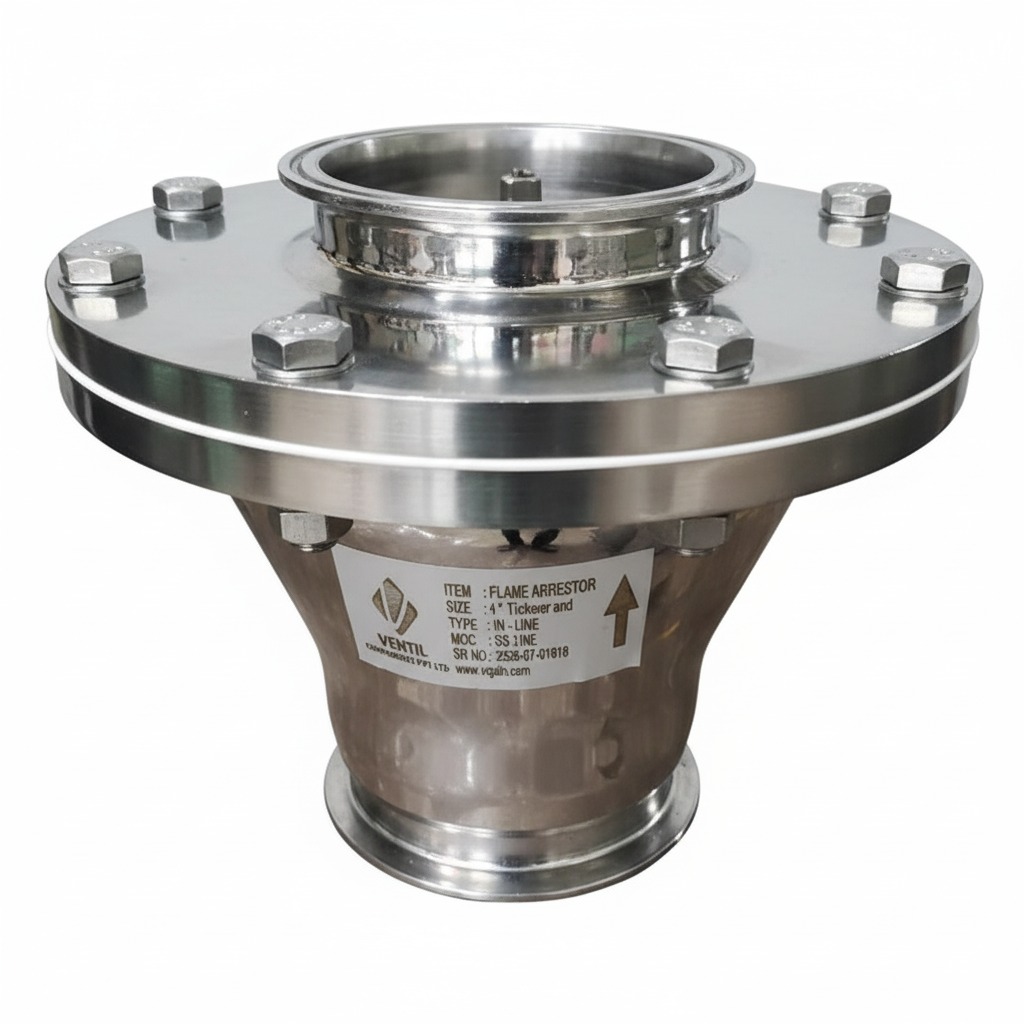

For reliable flame arrestor in India, explore Ventil In Line Flame Arrester engineered for durability, accuracy, and compliance with global standards.
